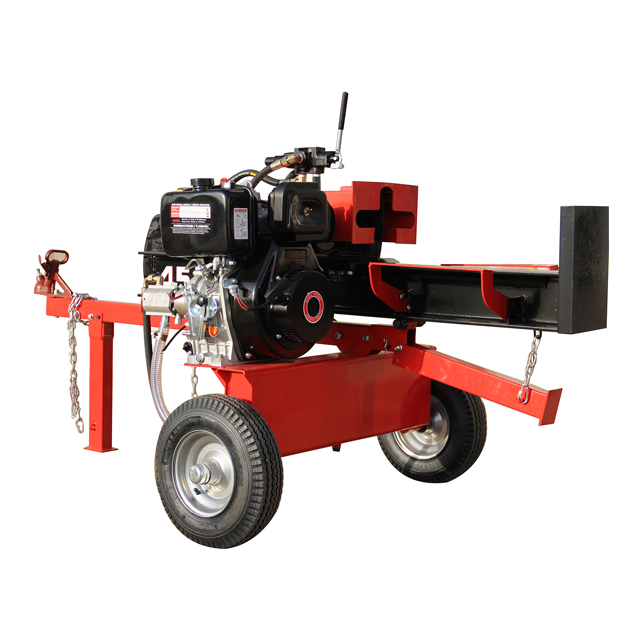

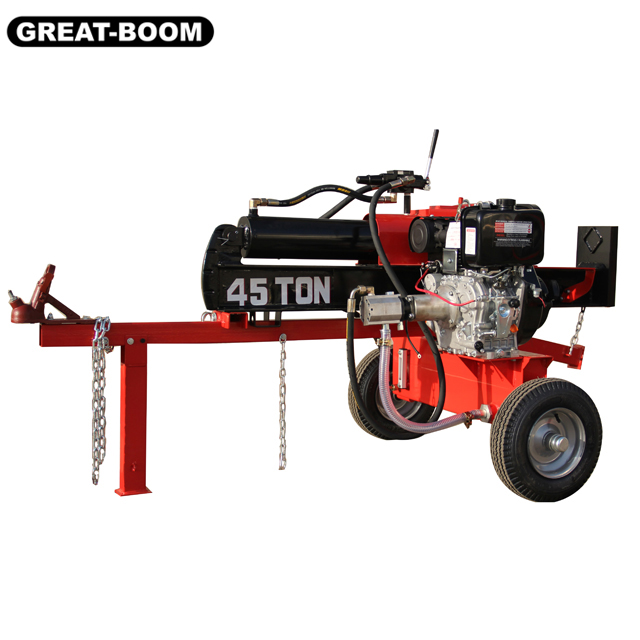

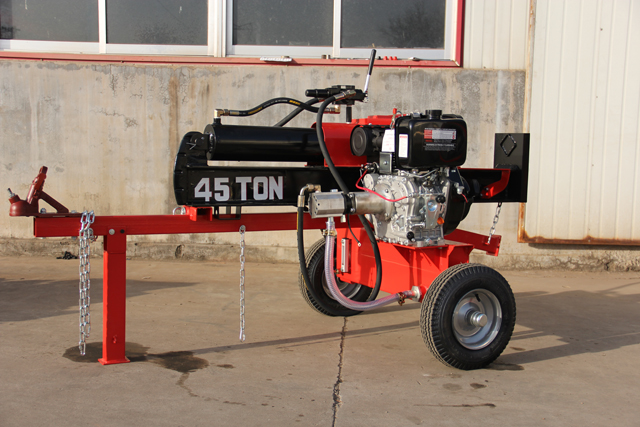

LS45BD-D-ES

1) LS45BD-D-ES, black diamond series

2) Engine: 13 horsepower diesel engine, 4 strokes, OHV, air-cooled

3) Engine Brand: HP diesel engine

4) Start: manual (recoil) start & electric start w/o battery

5) Hydraulic Cylinder Size: 5.0"

6) Oil Capacity: 20.5 liters

7) Gear Pump: 2 stages 16GPM flow;

8) Valve: automatic return control valve with safety release function

9) Maximum Splitting Force: 45Ton (marking 50Ton)

10) Wedge height: cast iron made, 8 inches (200mm)

11) cross wedge: included

12) professional log stripper: included

13) professional metal cap of hydraulic oil tank: included

14) professional sight glass and oil level: included

15) Split and Return Cycle Time: 16 seconds

16) Maximum Log Length: 610mm

17)Working Position: horizontal & vertical

18) Wheels and Tires: 400mm diameter wheel

19) Maximum Recommended Towing Speed: 40 km/h

20) Package Diameter:210cm x 51cm x 45cm

21) Package Weight: 315KGS

22) If Iron Frame Package: 40PCS / 40PKGS / 20GP; 88PCS / 88PKGS / 40HQ
