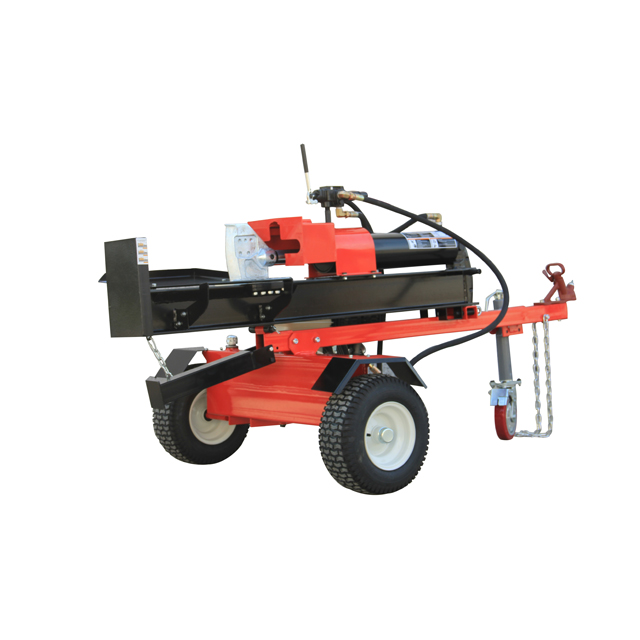

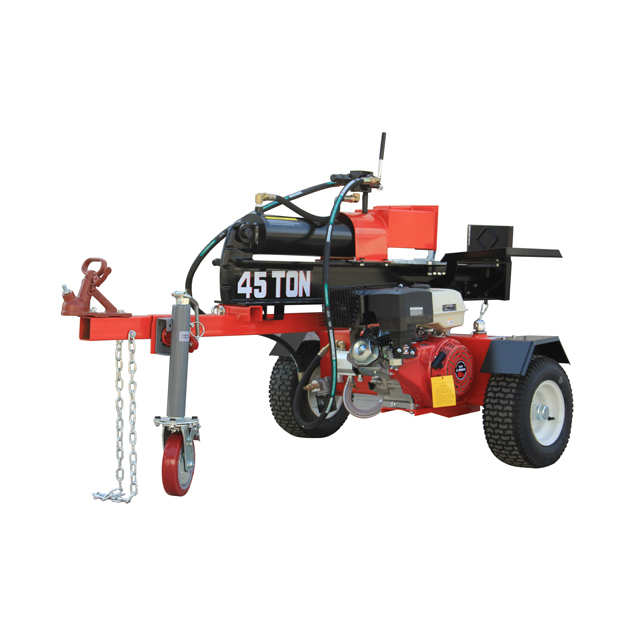

Model NO.: LS45BDS Log Splitter
Price: USD 894.00-959.00 / sets
Delivery: FOB
Min order: 5 sets
Accept Min order: Yes
Stock Time: 7-14 Days
Model | LS45BDS, commercial type machine |
Brand | Great-Boom |
Manufacturer's Warranty | 3 year limited warranty |
Beam | Heavy-Duty Formed Steel |

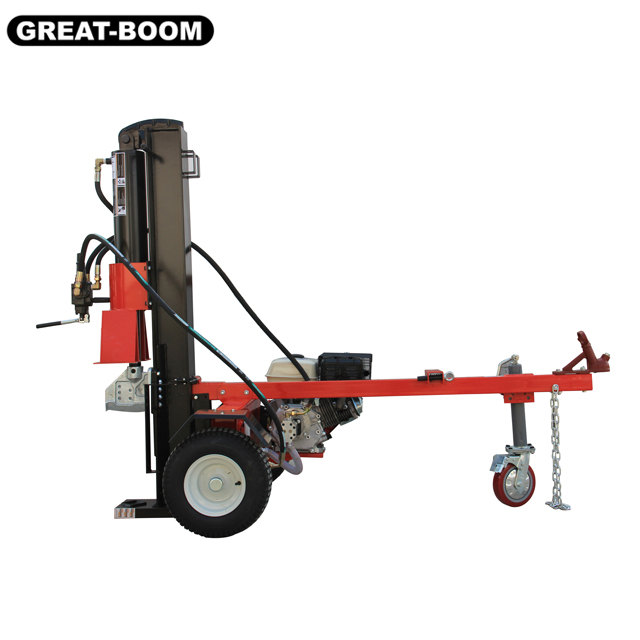

Product Type | Horizontal/vertical splitter |
Log Stripper | Yes, professional durable heavy-plate |
Thermometer on hydraulic oil tank | Available |
Level gauge design on hydraulic oil tank | Available |
Capacity of hydraulic oil tank (L) | 20 |
External filtration | 4-stage hydraulic filtration system design |
Oil pump | 2-stage, 16GPM, Cast iron concentric pump |
Controlling Valve | American-made concentric brand™valve |
Ram Force (Tons) | 45 |
Max. Log Size L x W (in.) | 24 x 22 |
Continuous Force (Tons) | 40 |
Engine | Lifan 188FX / 190FX |
Engine Displacement (cc) | 389 / 429 |
Gross Torque | 25.0N.m/2600rpm |
Low Oil Shutdown | Yes |
Wedge | 8 1/2in.H, heavy-duty cast iron knife, electroplated surface |
Cycle Time (sec.) | 13 |
Cylinder seals | Halite commercial cylinder, 125°C |
Automatic Cylinder Return | Yes |
Cylinder | 5" X 24" clevis type, 1.75" rod |
Pump | 16 GPM (Deli) |
Max. PSI | 3,500 |
Oil Reservoir (gal.) | 5.3 |
Fuel Capacity (gal.) | 1.72 |
Hoses | High-pressure w/wire braid, 40Mpa capacity |
Log Cradle | Yes |
Log Table | Yes |
Log Lift | No |
Jack Stand | Yes, 2000 lbs |
Brake wheel (in.) (Front) | 8”, industrial standard, 2ton pressure capacity |
Ball Coupler (in.) | 2”, Max payload 1500kgs |
Tire Size | DOT, tubeless, 650 x 8.0" Highway Rated |
Lights | No |
Fenders | Yes |
Tow cable | Yes |
Pre-assembled | Assembly required |
Package | 10mm / 12mm thickness wooden packing, no fumigation, export type |
Machine Dimensions L x W x H (in.) | 90.55” x 47.64” x 48.82” / (230 X 119 X 124CM) |
Package Dimensions L x W x H (in.) | 83.47” x 22.44” x 25” / (212 x 57 x 63.5 cm) |
Package Material | Fully enclosed wooden box, suitable for export, no fumigation |
Ship Weight | 691.0 lbs (313.43KGS) |
LS45BDS is an upgraded version of 45BD
1) LS45BD is equipped with ordinary front legs, LS45BDS is equipped with a 2000-pound jack and an 8-inch brake wheel, and has telescopic & folding functions; 2) LS45BDS is equipped with a professional-grade wood remover to better protect the cylinder; 3) LS45BD wedge is welded; LS45BDS wedge is cast iron, and the surface is galvanized, which is wear-resistant and stronger; 4) LS45BD is equipped with an ordinary refueling (hydraulic oil) cover; LS45BDS is equipped with a metal cover, which has a longer life; 5) LS45BDS is equipped with a thermometer with an observation hole on the hydraulic oil tank to better observe the hydraulic oil position and current temperature; 6) LS45BDS is equipped with a pallet for placing wood; 7) Gasoline engine sinking treatment, more in line with user requirements; 8) The LS45BD is iron frame & wrapping film packaging; LS45BDS is wooden box packaging
