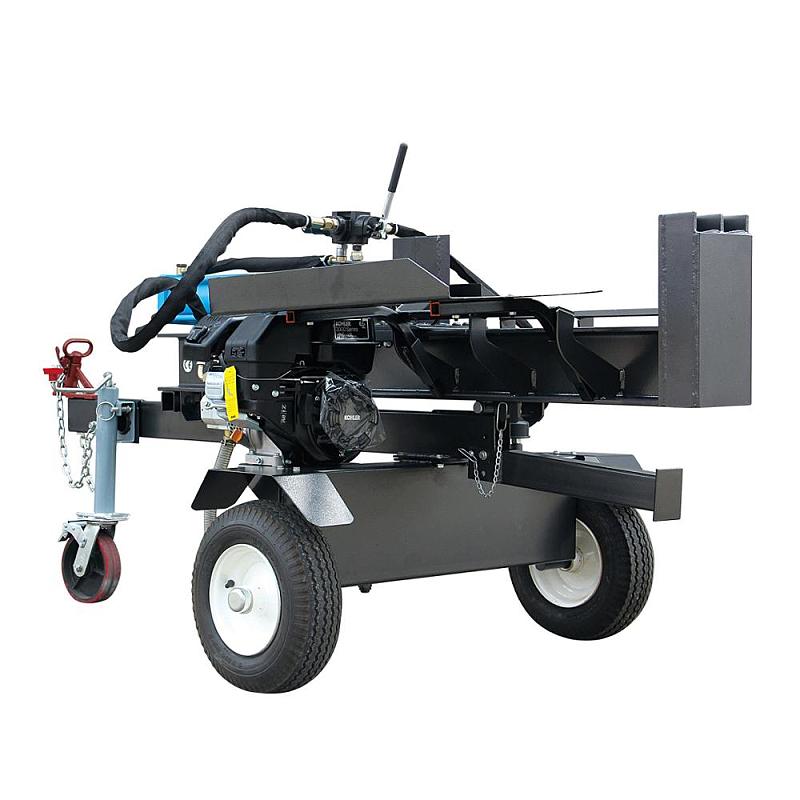

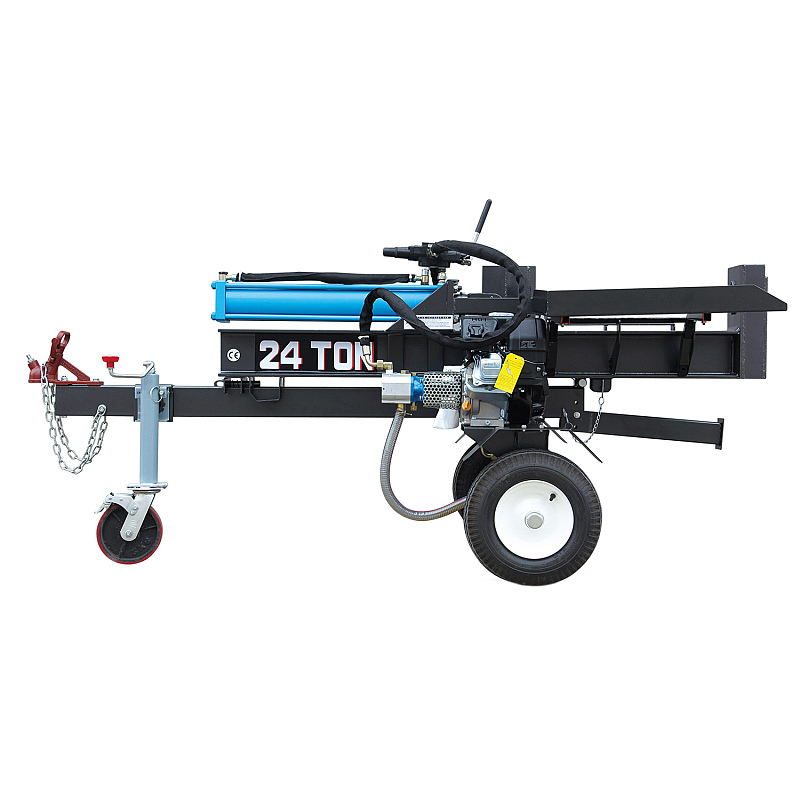

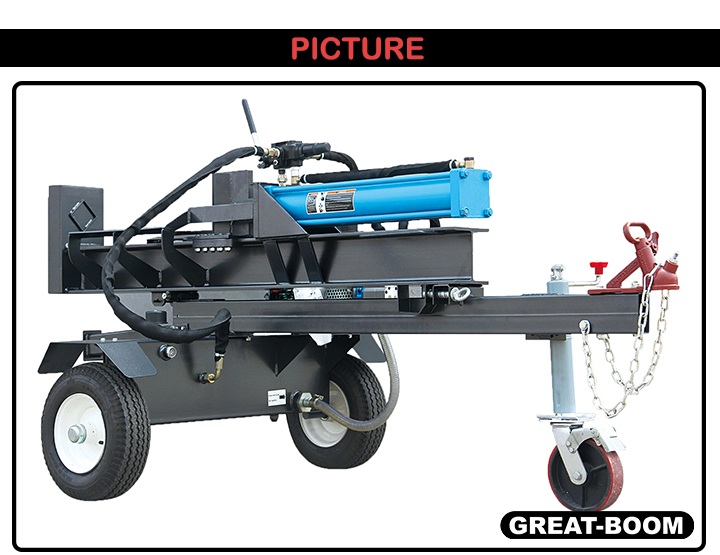

LS18T/24T/30T-610mm-FPM

LS18T/24T/30T-610mm-FPM

Model NO.: LS18T24T30T-FPM Log Splitter

Price: USD 645.00-793.00 / sets

Delivery: FOB

Min order: 4 sets

Accept Min order: Yes

Supply Ability: 300 sets / Month

Stock Time: 45 Days

0.00
0.00


Model NO.: LS18T24T30T-FPM Log Splitter

Price: USD 645.00-793.00 / sets

Delivery: FOB

Min order: 4 sets

Accept Min order: Yes

Supply Ability: 300 sets / Month

Stock Time: 45 Days

Brand: GREAT-BOOM

Model: LS18T/24T/30T-610mm-FPM

Engine: 6.5 horsepower, 4 stroke, OHV, air cooled

             6.5 horsepower, 4 stroke, OHV, air cooled

             9.0 horsepower, 4 stroke, OHV, air cooled

Engine Brand: LIFAN, KOHLER, B&S

Start: manual (recoil) start

Professional Log Stripper: with

Log Table: with

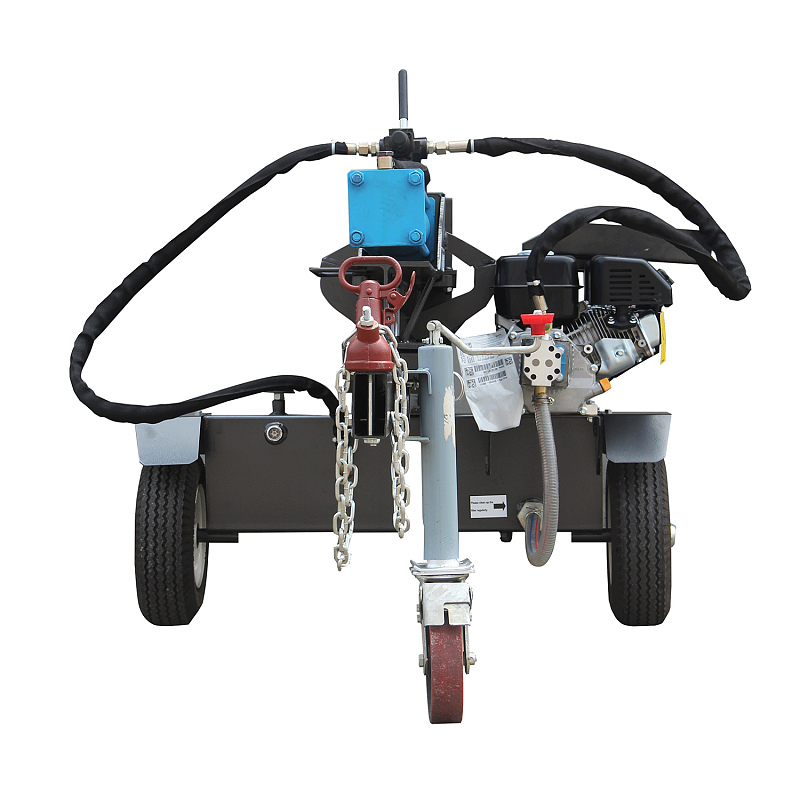

Jockey Wheel: 8 inch (200mm) x 2000 LB capacity jockey, industrial grade brake wheel

Hydraulic Cylinder Size: 101.60mm diameter x 610mmstroke;

                                         114.30mm diameter x 610mmstroke;

                                         127.00mm diameter x 610mmstroke

Oil Capacity: 20 liters

Gear Pump: 2 stage 11GPM flow;

2 stage 11GPM flow;

2 stage 16GPM flow

Valve: automatic return control valve with safety release function

Maximum Splitting Force: 18Ton, 24Ton, 30Ton

Wedge Height: 8 inch (200mm) cast wedge material

Split and Return Cycle Time: 10 seconds

                                               13 second

                                               13 second

Maximum Log Length: 24 inch (610mm)

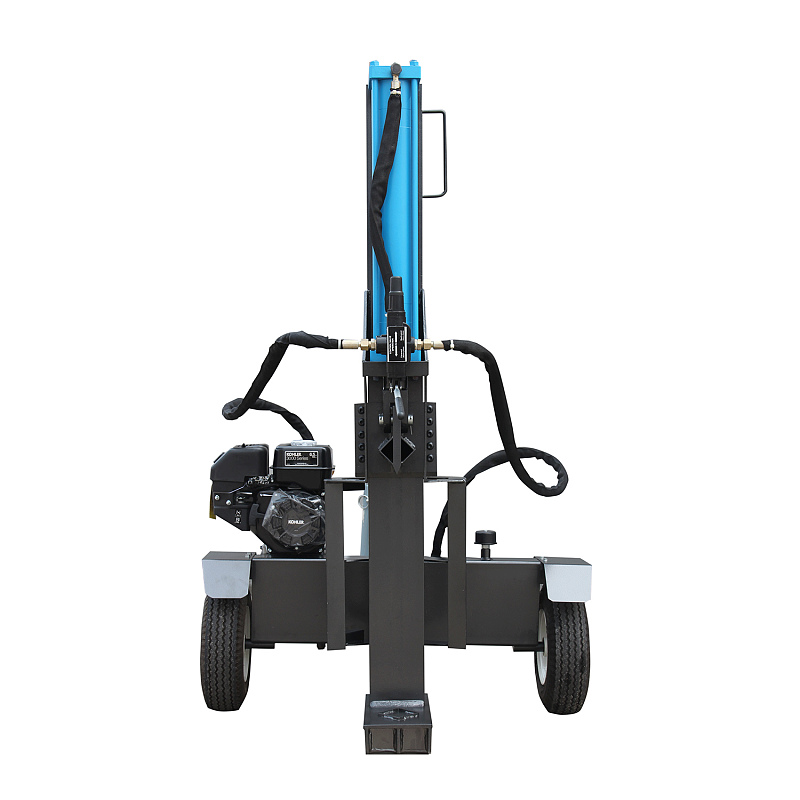

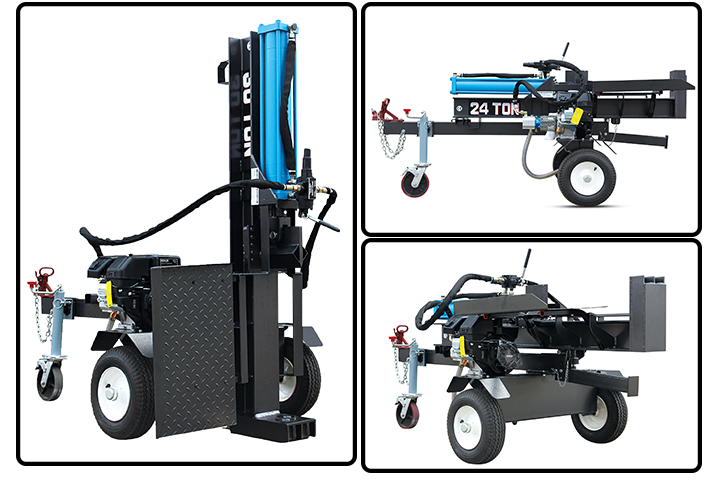

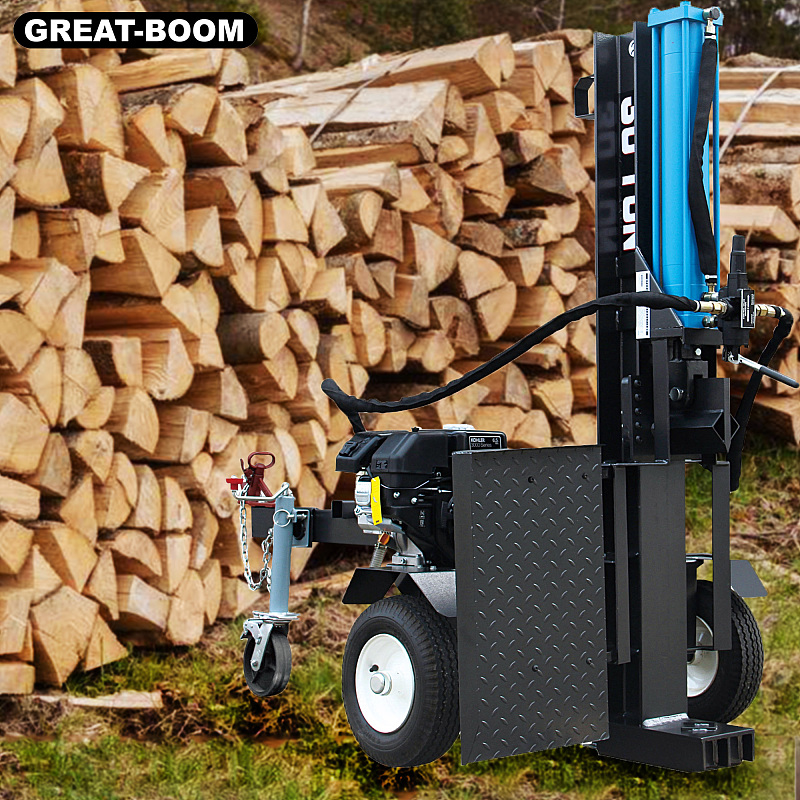

Working Position: horizontal & vertical

Wheels and Tires: 16 inch pneumatic x 4.8 inch

Mudguard: with

Coupler:50mm cast steel with safety chains

Maximum Recommended Towing Speed: 40 km/h

Package Diameter: 200cmx51cmx45cm

Package Weight: 252KGS 260KGS 278KGS

Warranty: 6 months

If Iron Frame Package: 56PCS / 40PKGS / 20GP; 165PCS / 88PKGS / 40HQ

Product Description

Great-Boom Garden Tool Co., Ltd.

  1. Cheap Price 30ton gasoline engine log splitter power splitter
  2. Vertical and horizontal type 24ton max pressure of cylinder
  3. Volume of hydraulic oil tank 20 liter
  4. Oil cylinder is produced in dust-free workshop
  5. The whole order machine is tested one by one
  6. The first Chinese manufacturer of hydraulic wood-splitting machines
  7. Versatile log splitter can switch from horizontal to vertical splitting position so you can roll larger logs under the wedge without having to lift them
Packaging & Shipping

Great-Boom Garden Tool Co., Ltd.

Packing Details: Iron Frame & Wrapping film or Wooden Pallet (optional) or according custmer enquirment.

Our Services

Great-Boom Garden Tool Co., Ltd

  • We can do 7 days to finish sample design
  • We have our own factories with advanced equipment and well trained workers.
  • We can provide factory price with trading company services.
  • We control production quality very strictly By test the whole order machine one by one
  • We guarantee 24 hours online response.
  • We accept small order quantity before formal cooperation.
  • During The Delivery

    We will arrange the shipment with reliable service and reasonable price, all the cost will be clear for you to compare.

Certifications

Great-Boom Garden Tool Co., Ltd.

Company Information
Great-Boom Garden Tool Co., Ltd.--wood splitter


Great-Boom Garden Tool Co., Ltd. The main products are Log Splitter, Log Sawand MTD parts.

About the log saw, it is with 600mm and 700mm blade, the gasoline engine is with 9.0HP, 13.0HP AND 15.0HP, the best seller is 13.0HP/700mm log saw.

For the log splitter, we make both gasoline log splitter and diesel log splitter; the tonnage is from 18Ton, 24Ton, 30Ton, 40Ton, 50Ton. Our machine can split both 610mm and 1050mm length log. Each one model has itself EC certification. We are the first one manufacturer to use telescopic cylinder in China, Our 1050mm type has applied for design patent.

We adhere to customer-focused, integrity-based, pragmatic and efficent, Cooperation and win-win, To Built a first-class garden tools enterprises.

We sincerely look forward to working with you!

Other Products

Great-Boom Garden Tool Co., Ltd.

FAQ


1.Q:You are Factory or Trading Company?

A: We are factory and trading Company ,our main products are log spliter, log saw.


2. Q:What’s the MOQ?

A:Generally,the trail order will be accepted.The MOQ can be confirmed according to the different products.


3.Q:Do you have OEM or ODM service?

A: YES.Variety of products size, quality and quantity can be customized according to your need.


4.Q: How about the delivery time?

A:T/T,30 deposit,70% againest copy of B/L.Within 15-30 days after receiving the deposit or L/C at sight.


5. Q:How about the trade terms?

A:EXW,FOB,CFR,CIF will be accepted.


6.Q:How about your payment terms?

A:30%TT in advance and the balance against of copy of B/L.

The irrevocable L/C at sight will be accepted.
