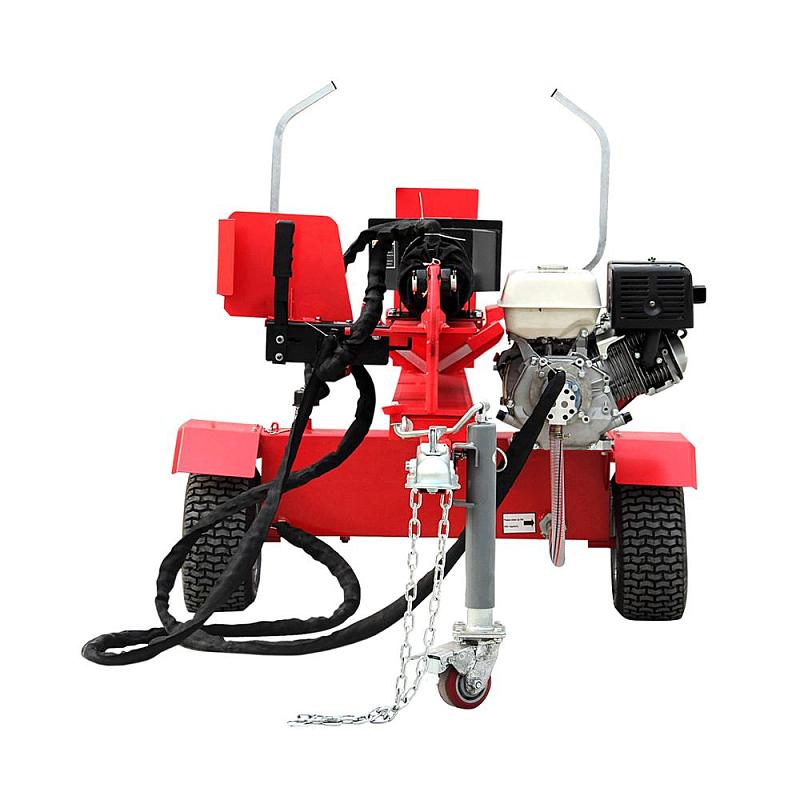

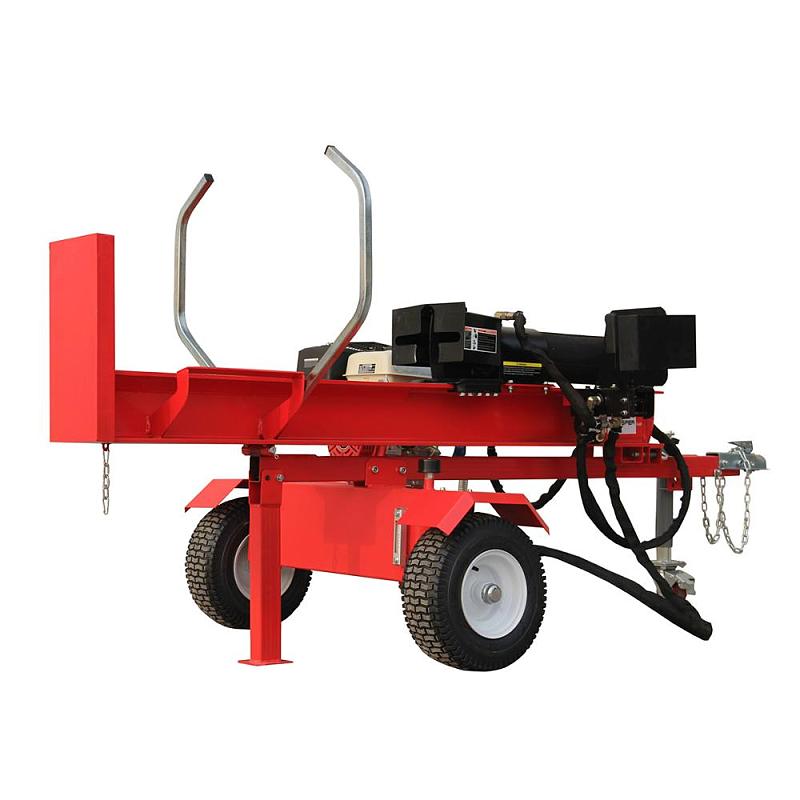

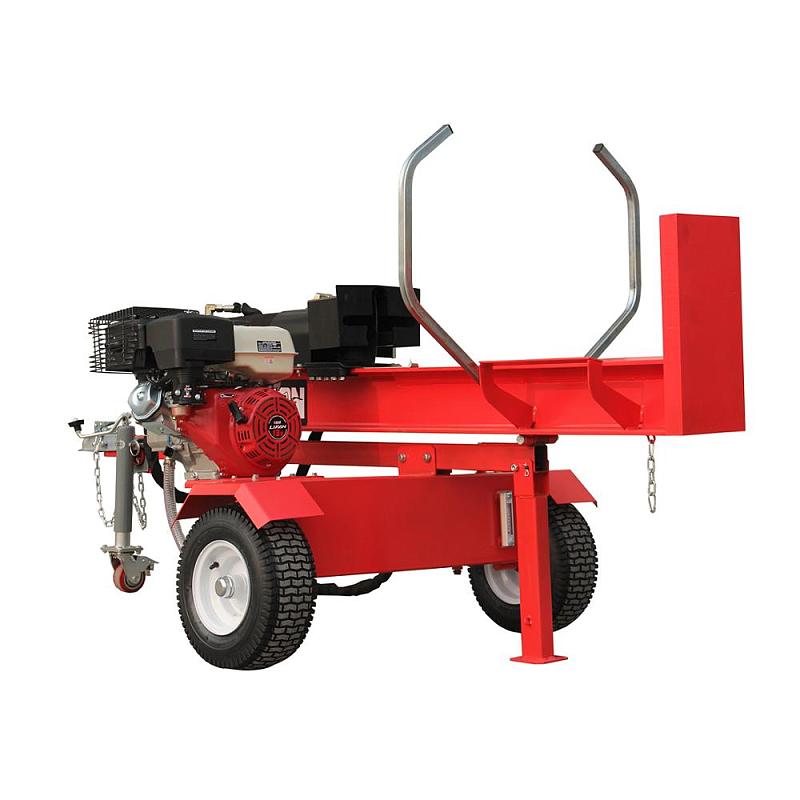

LS24T-1200mm-CTM

LS24T-1200mm-CTM

Model NO.: LS24T-CTM-1050MM Log Splitter

Price: USD 930.00-1080.00 / pieces

Delivery: FOB

Min order: 20 pieces

Accept Min order: Yes

Supply Ability: 300 pieces / Month

0.00
0.00


Model NO.: LS24T-CTM-1050MM Log Splitter

Price: USD 930.00-1080.00 / pieces

Delivery: FOB

Min order: 20 pieces

Accept Min order: Yes

Supply Ability: 300 pieces / Month

Model: LS24T-1200mm-CTM

Engine: 6.5 horsepower, 4 stroke, OHV, air cooled

Engine Brand: LIFAN, KOHLER, B&S

Start: manual (recoil) start

Jockey Wheel:

Log Holding Arm: with

Professional Log Stripper: with

Hydraulic Cylinder Size: 4.0" combined 3.0"

Oil Capacity: 30.5 liters

Gear Pump: 2 stage 11GPM flow;

Valve: automatic return control valve with safety release function

Maximum Splitting Force: 24Ton

Wedge Height: 8 inch (200mm) cast wedge material

Split and Return Cycle Time: 13 seconds

Maximum Log Length: 47 inch (1200mm)

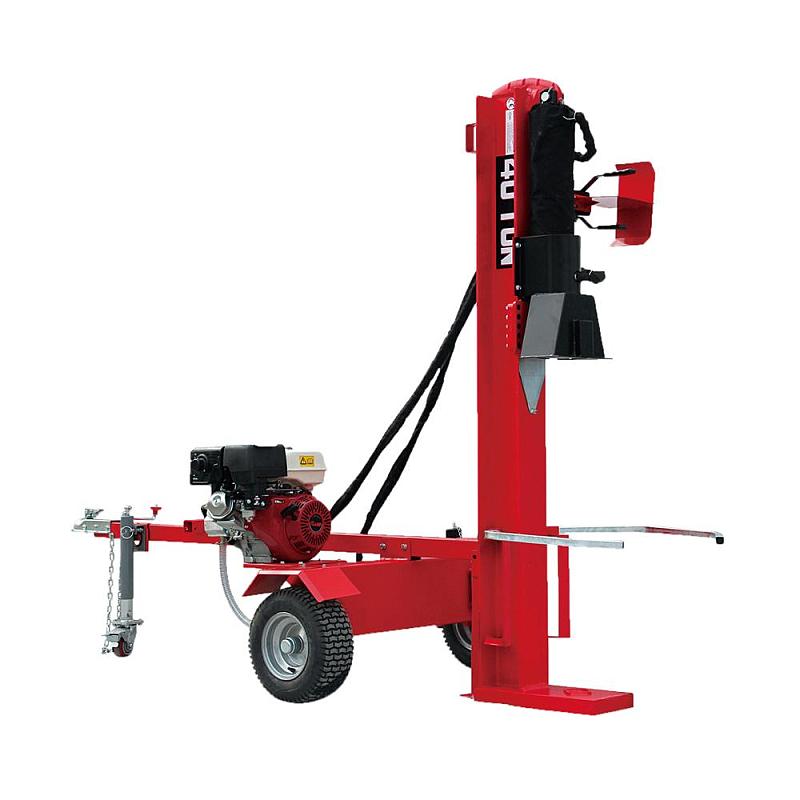

Working Position: horizontal & vertical

Wheels and Tires: 16 inch pneumatic x 6.5 inch tubeless

Mudguard: with

Coupler:50mm cast steel with safety chains

Maximum Recommended Towing Speed: 40 km/h

Package Diameter: 215cmx51cmx45cm

Package Weight: 326KGS

Warranty: 6 months

If Iron Frame Package: 40PCS / 40PKGS / 20GP; 80PCS / 80PKGS / 40HQ

Product Description

Sales Best Manual Wood log Splitter

TECHNICAL SPECIFICATION

Model

LS24T-CTM-1050MM

LS40T-CTM-1050MM

Description

Gasoline engine driven, horizontal or vertical,Recoil or Electric

Gasoline power

6.5HP

15.0HP


Diesel power

8.0HP

11.0HP


Max. split force

24tons

40tons


Max split size

1200mm

Hydraulic oil

30.5L

Oil cylinder diameter

4.0"-3.0"

5.0"-4.0"


Travel time

13seconds

Brand of Petrol engine

Lifan,Honda,Kohler,B&S or other

Brand of diesel engine

H-Power

Starting System

Recoil or Electric

Packing dimensions

210*54*54

N.W./ G.W.

240/250kgs

267/277kgs


Packing Method

Iron Frame & Wrapping Film or Wooden Pallet (optional)

Container Qua

40pcs. for 20'FCL 80pcs.for40'HQ

Warranty

24 months since B/L date

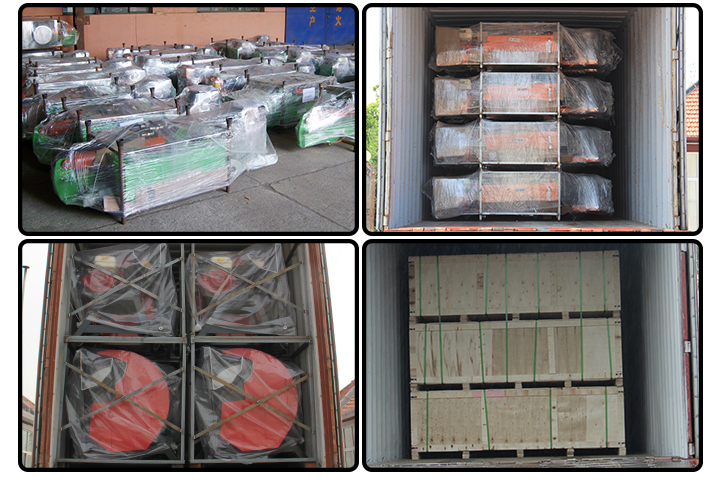

Packaging & Shipping

Company information

We,Qianan Great-Boom Commercial Trade Co,Ltd , were founded in 2004, we manufacture log saw and log splitter now.

When it comes to petrol log saw, I could say that we are the pioneer who have designed and manufactured

since 2012 in domestic market . Now, we are experienced in practical production and operation and our

products have already been approved by CE (TUV) .As for power , we normally use engine(9hp - 14hp ) in

both Chinese brand and aboard brand Besides , we use high-quality and efficient TCT 700mm blades in

diameter which are approved by GS .

About the log splitter, our main products are both gasoline log splitter and diesel log splitter,

and the tonnage is from 18Ton, 24Ton, 30Ton, 40Ton to 50Ton. Our machine can split from

610mm to 1200mm length log. Their working capacity is from 16inch to 22inch diameter log.

We are the first one manufacturer to use telescopic cylinder in China, our 1050mm type has

applied for design patent. All models have obtained CE, GS, RoHS, EMC certification.

We can do

1) 7days to finish sample design

2) 20days to 25days for one full container

3) Any Pantone color available

4) 2 years warrantees

5) Special sample available

6) More payment mode for your choice here

7) OEM & ODM

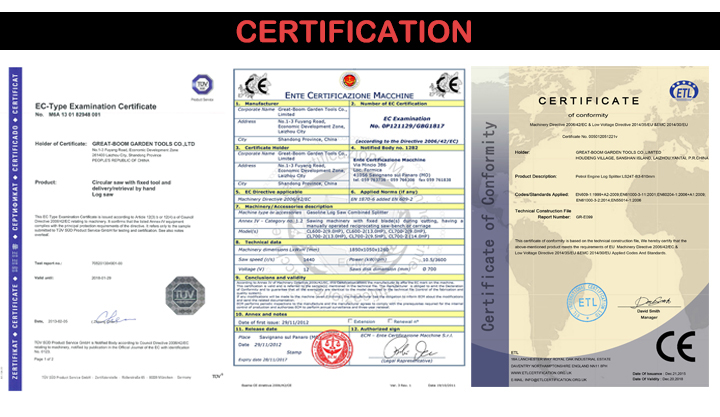

Certifications

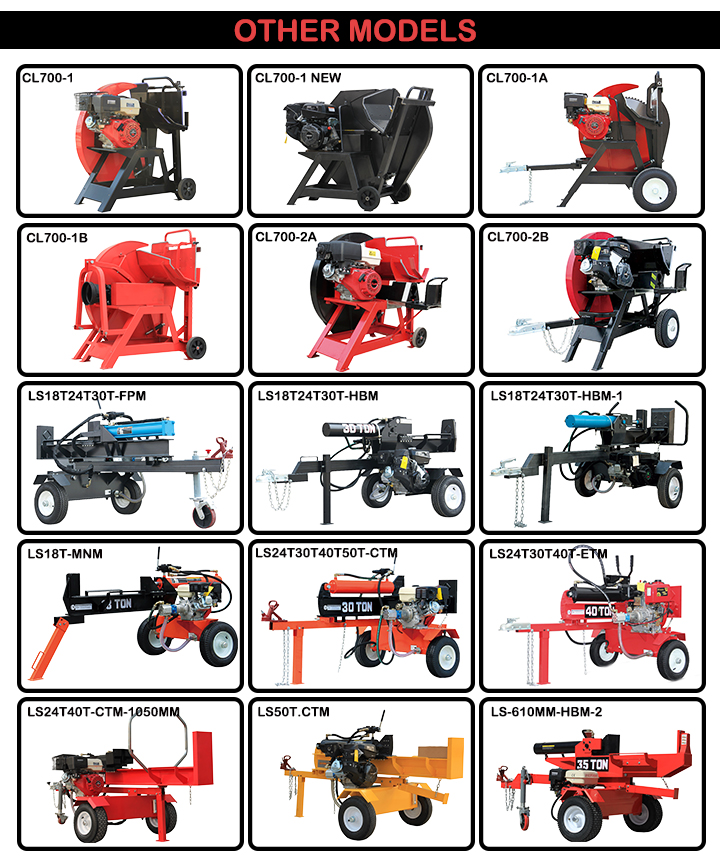

Other Models
