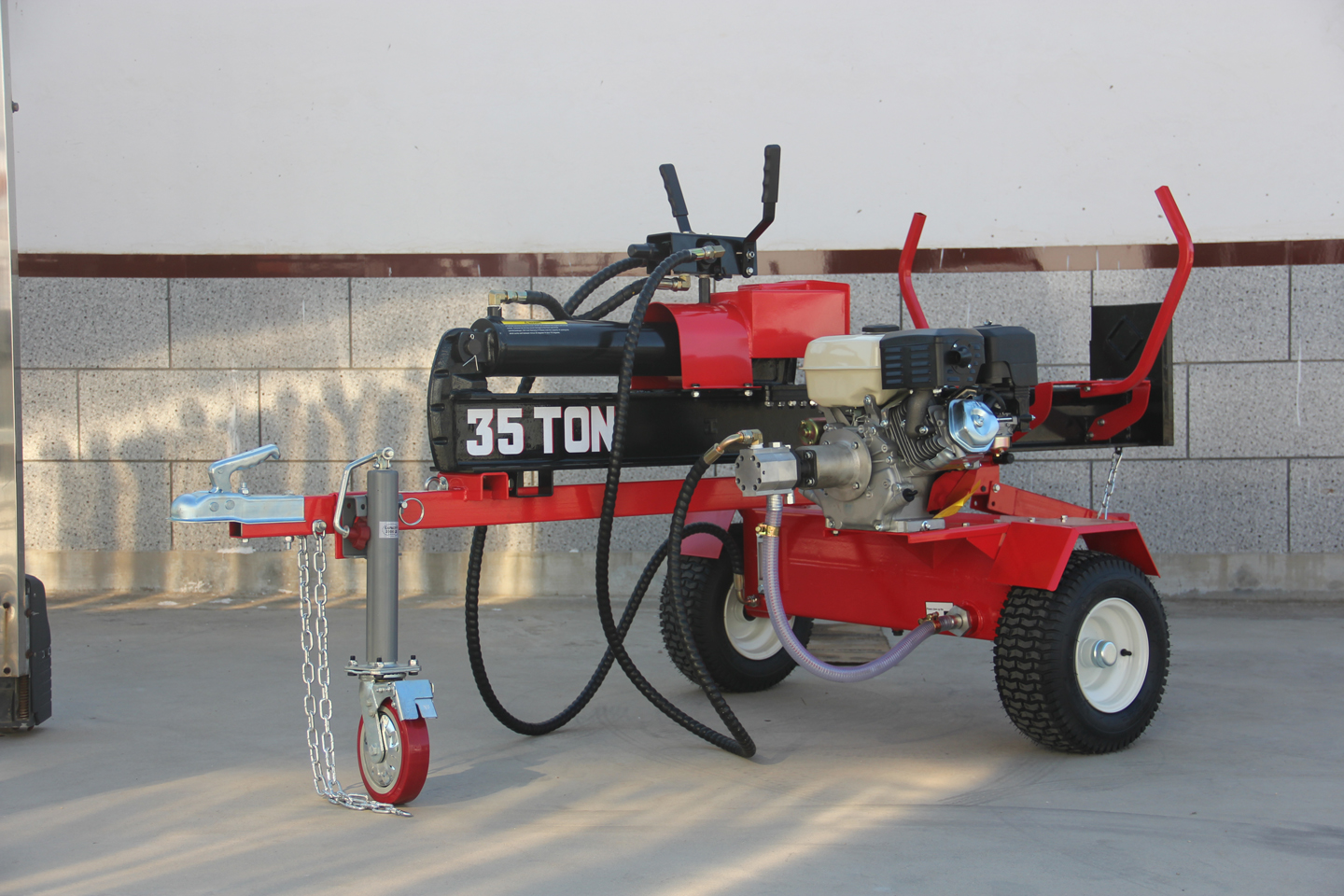

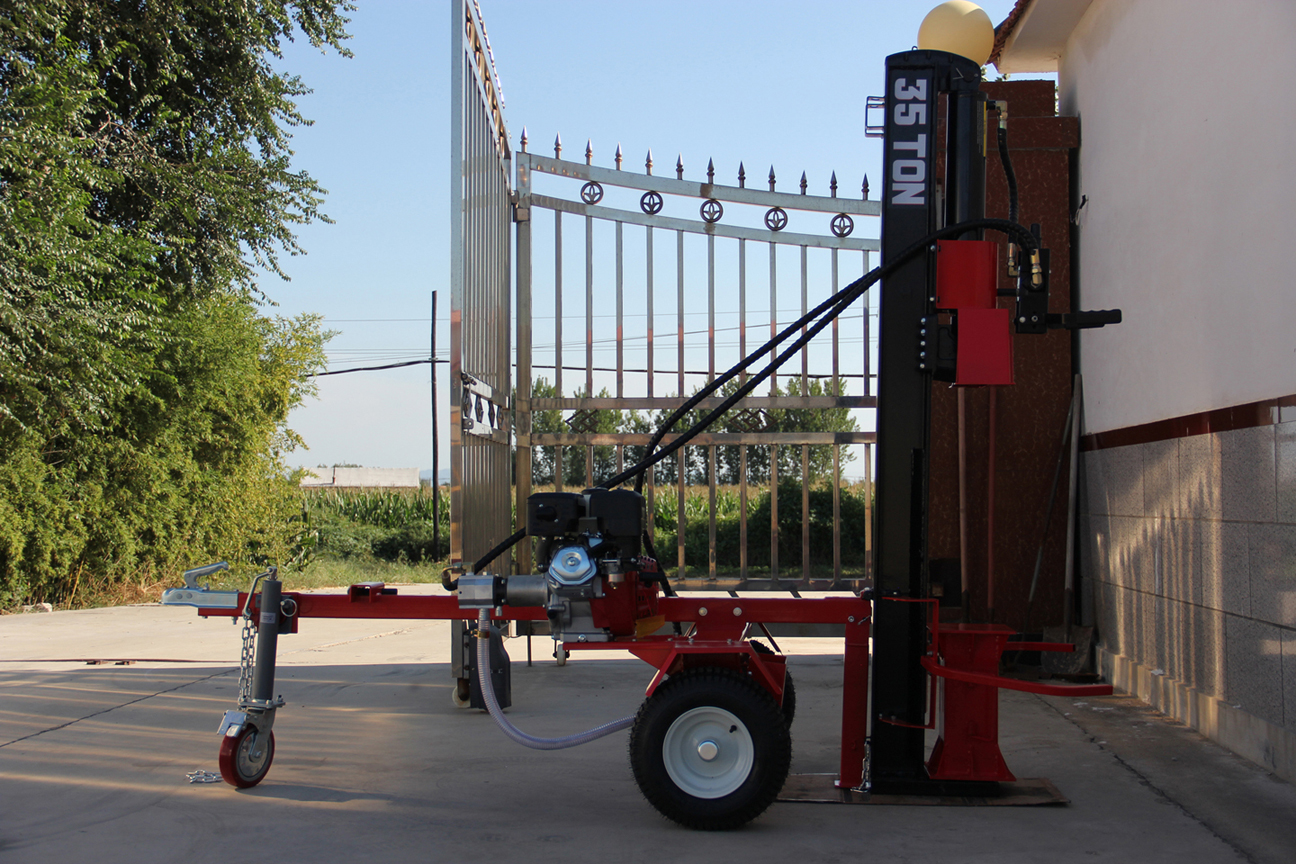

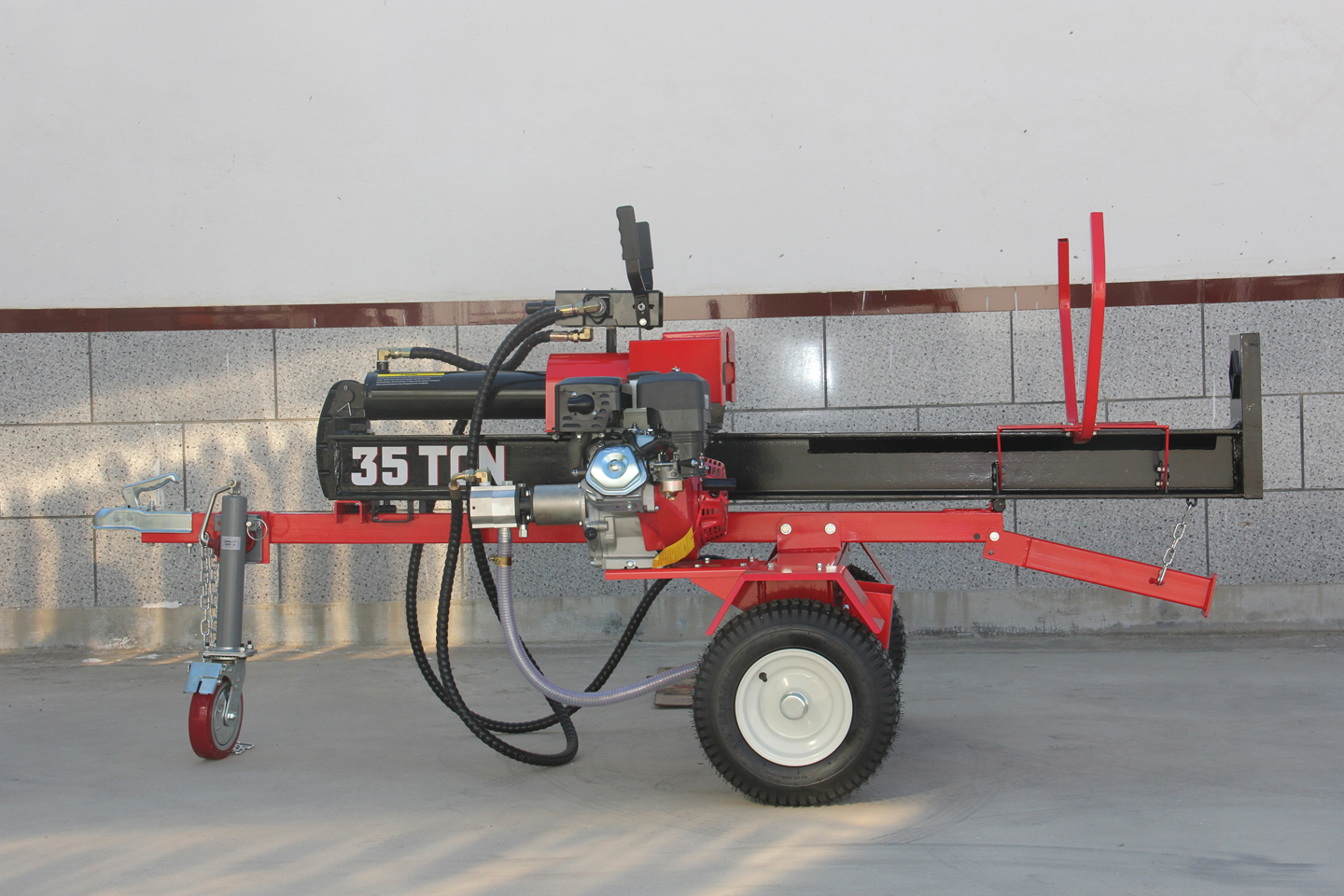

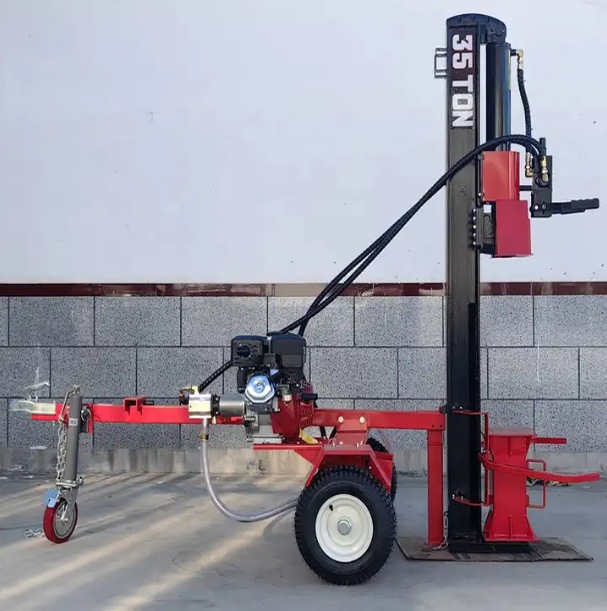

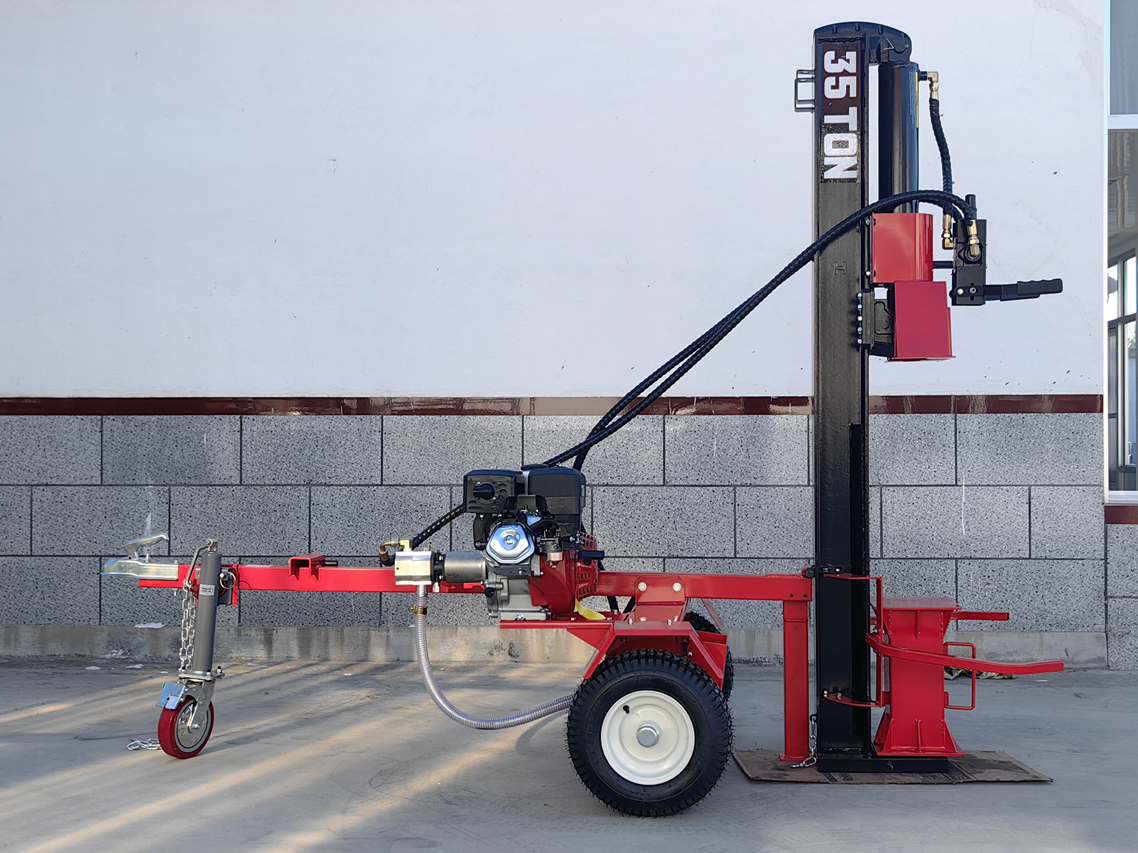

LS35T-1200mm-CTM

Engine: 9.0hp gasoline engine or 8.0hp diesel engine, 4-stroke, OHV, air-cooled

Engine Brand: LIFAN

Start: manual start & electric start

Jockey Wheel: 2000 lbs., 8" industrial-grade brake wheel

Log Holding Arm: available

Log Stripper: heavy-duty type, available

Log Stand: 24", 47"

Hydraulic cylinder size: telescopic cylinder, patented design

Cylinder: 4" combined 3.5" x 41.34" stroke

Oil Capacity: 30.5 liters

Gear pump:2 stage, 16 GPM

Valve: automatic return control valve with safety release function, American-made concentric pump and brand™ valve

Max. Force: 35ton

Wedge: 8" cast sharp

Cycle time: 16 seconds

Length to split: 24”, 47”

Max. diameter to split: 22"

Working position: horizontal and vertical type

Wheels and tires: 650-8, 16" DOT, tubeless

Trailer coupler: 50mm cast steel with safety chain

Package diameter: 220 x 54 x 1350px

package weight: 326kgs
