500mm width belt has higher efficiency

Strong tire axle with spring steel plate installed

Hydraulic flow valve control belt transportation speed

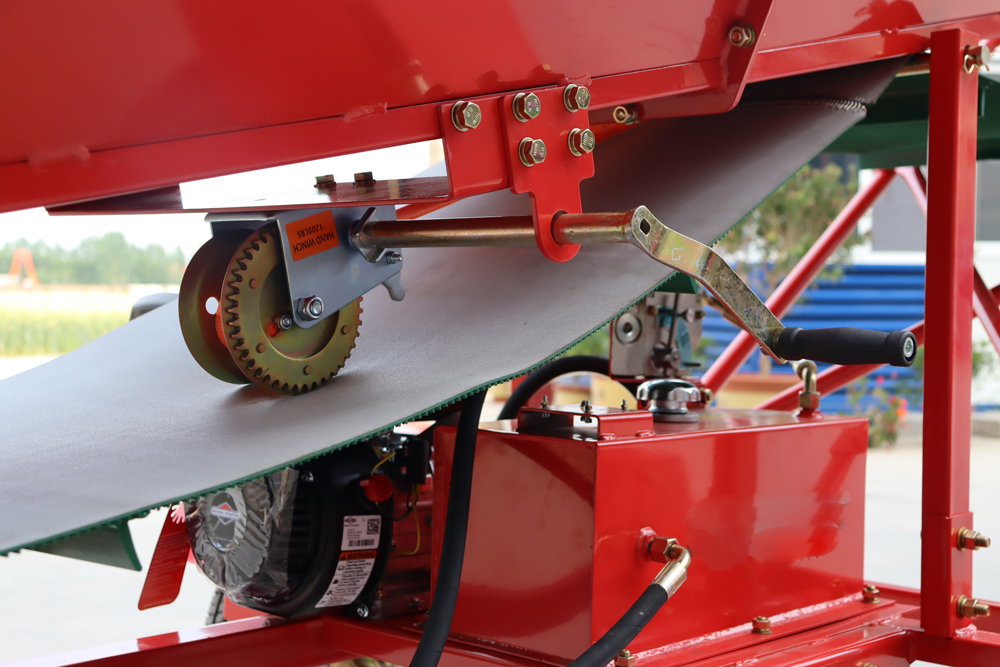

Manual winch easy adjust conveyor height

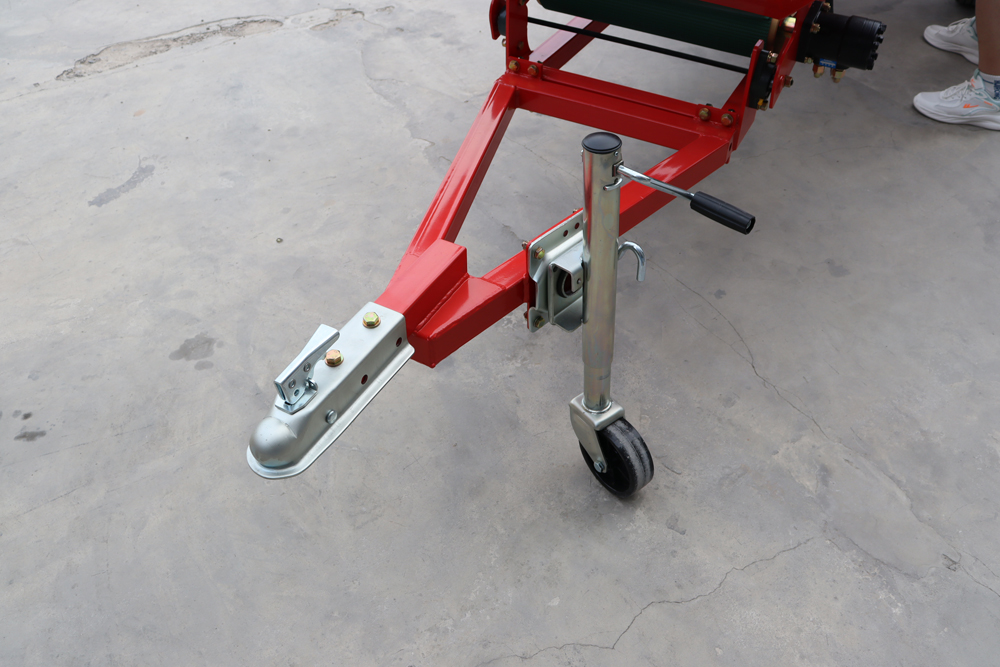

Jockey wheel helpful for easy moving the conveyor

Under conveyor body have safety lock, working more safety

Model: FWC500B

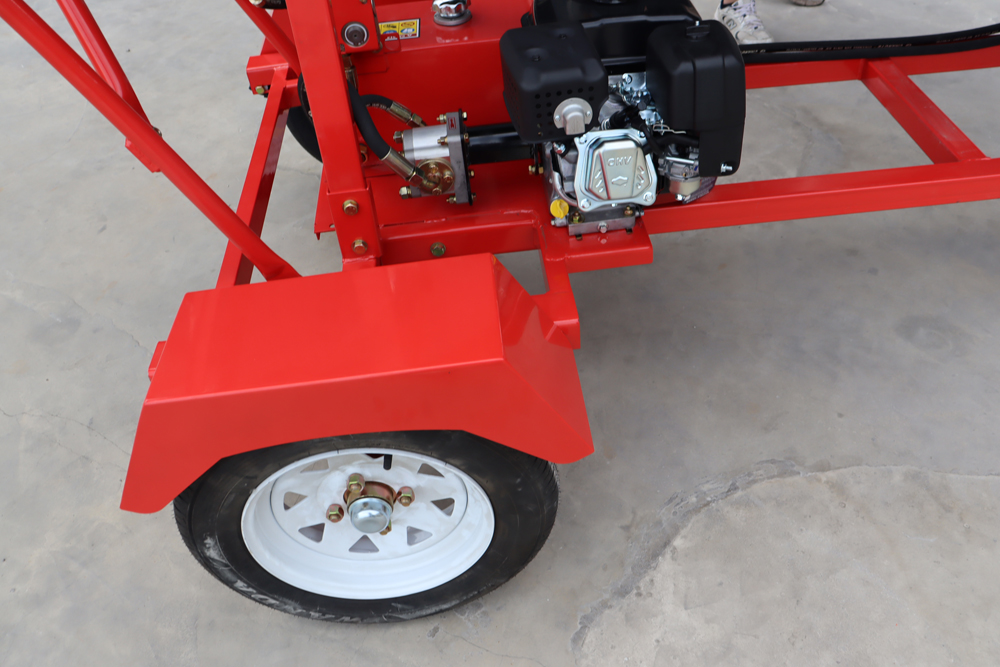

Engine: 6.5hp gasoline engine

Engine: recoil start

Belt speed: 0.7m/s

Belt width / material: 500mm/PVC

Height adjusted: by manual winch

Max height: 3m

Circumference: 9450mm

Belt thickness:5mm

Wheels: 145/17R12

Weight(N.W./G.W.): 365kgs/435kgs

H.S.Code: 84283300

Package size: plywood pallet

Package size: 2250 x 800 x 750mm

Quantity: 21PCS/20GP; 42PCS/40FT
