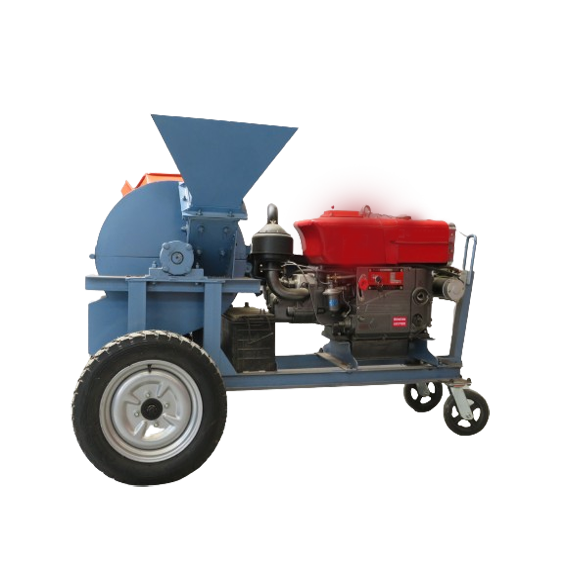

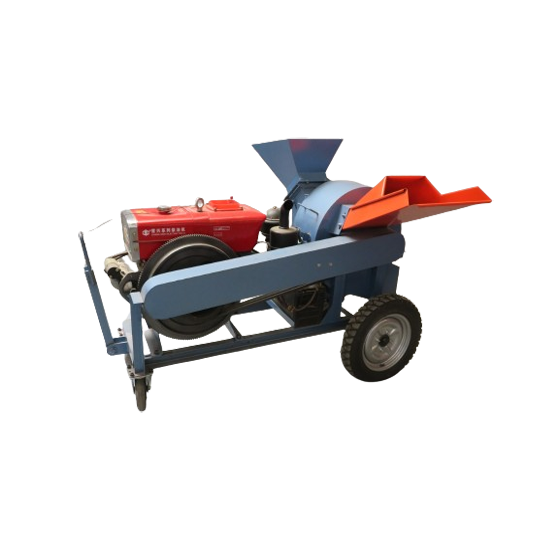

Model: MFJ-420 Firewood Crusher

Double feed port & double blade diesel engine frame with wheel belt traction frame

Application: wood mill machine cutting wood, branches, bamboo and plate into chips

Motor: diesel engine 15 horsepower, 11kw

Straw and forage: 800-1500kg/h

Cutter disk diameter: 424mm

Machine weight: 300kgs

Machine size: 175 x 100 x 2625px

Wooden box packaging size: 187 x 92 x 2875px

Wooden box packaging weight: 438kg

Diesel engine parameters:

Model: ZS1100M

Engine type: single cylinder, I, evaporative water cooling, four-stroke

Combustion chamber type: direct injection

Displacement: 900ml

Power: kw/r/min:12.1/2200

Fuel consumption: ≤246.2 g/kw.h

Compression ratio: 17

Starting method: electric start

Net weight: 155kgs

Battery: 12v 105Ah 700A
