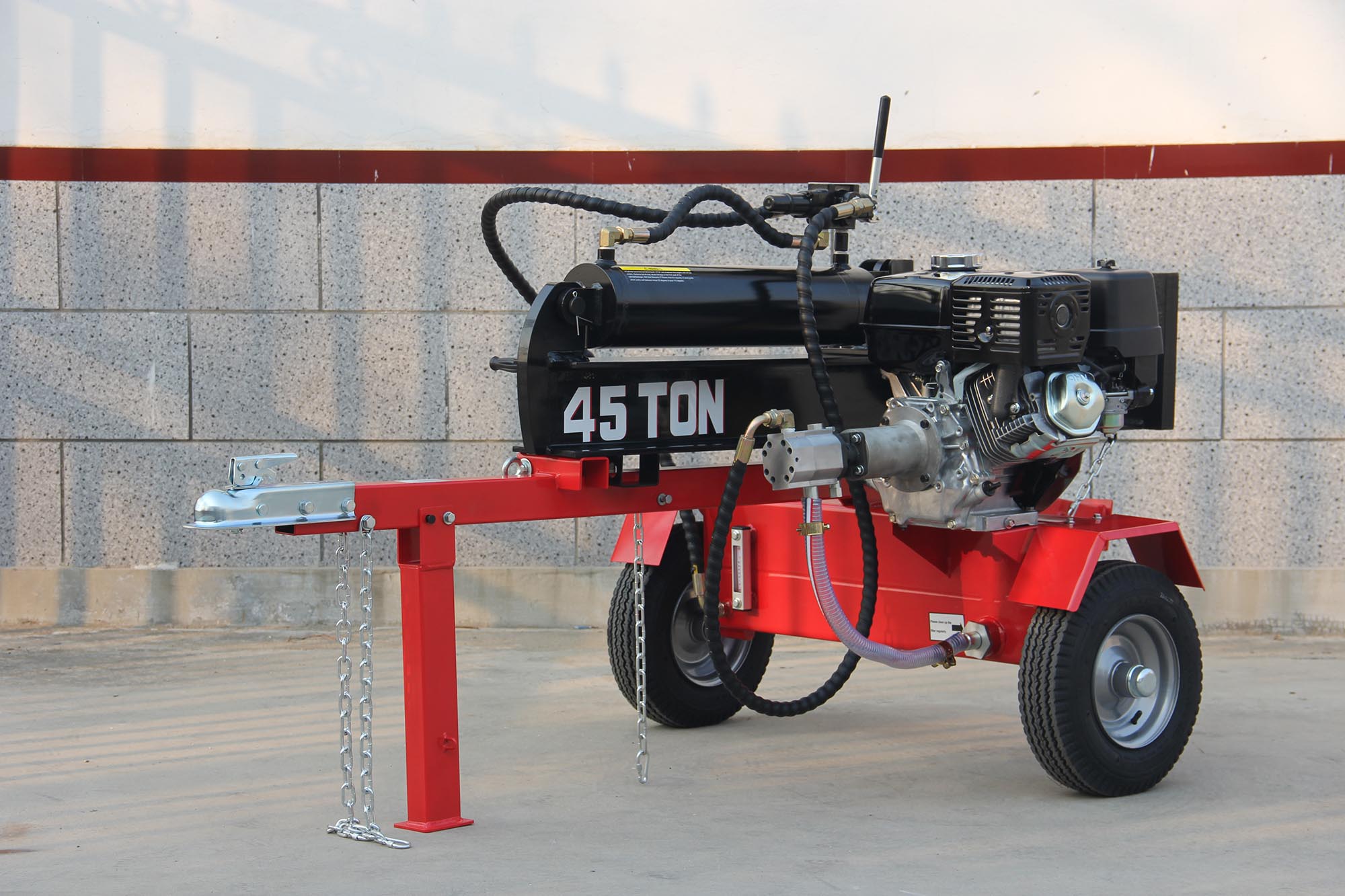

Model: LS45BD

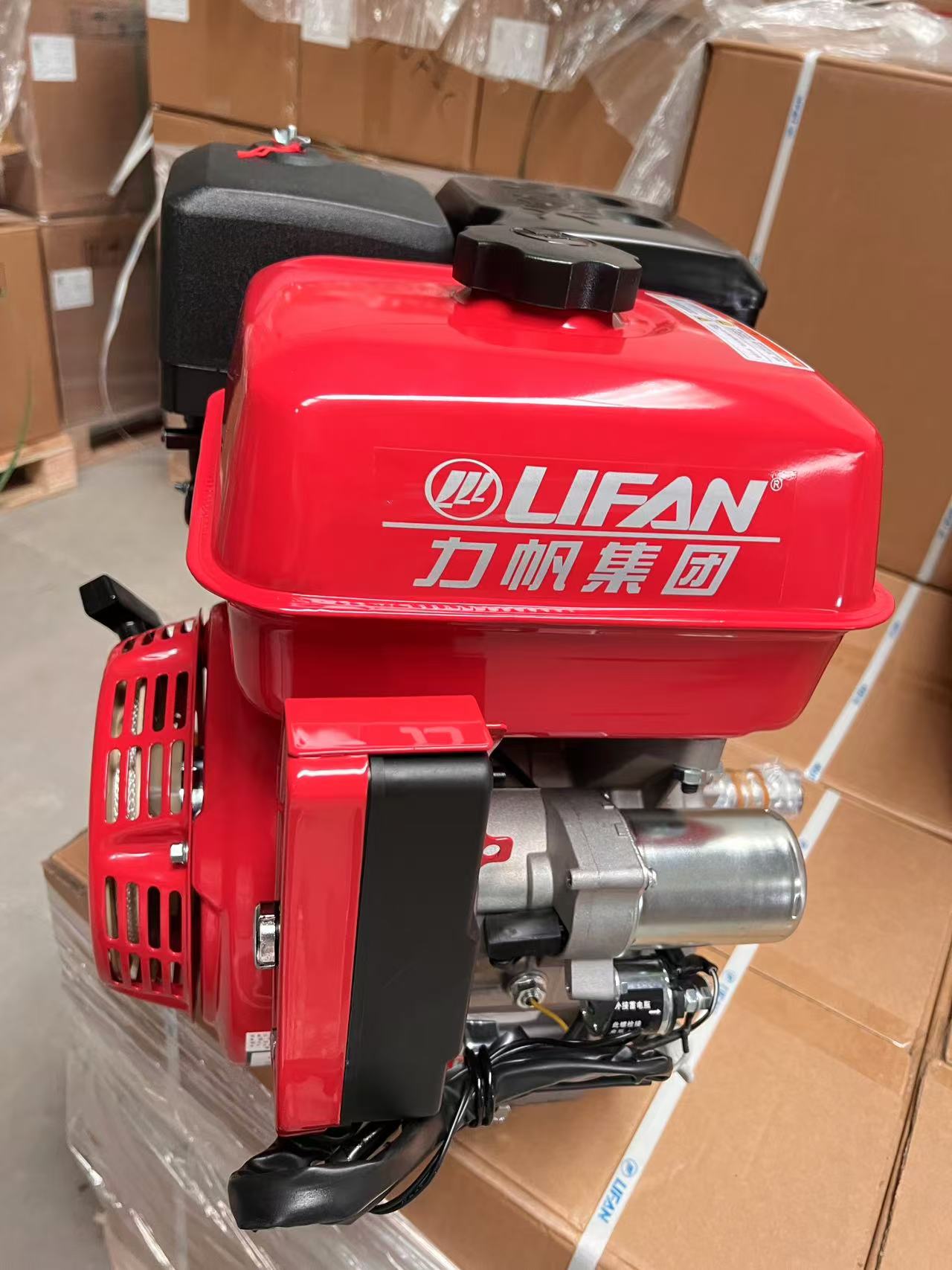

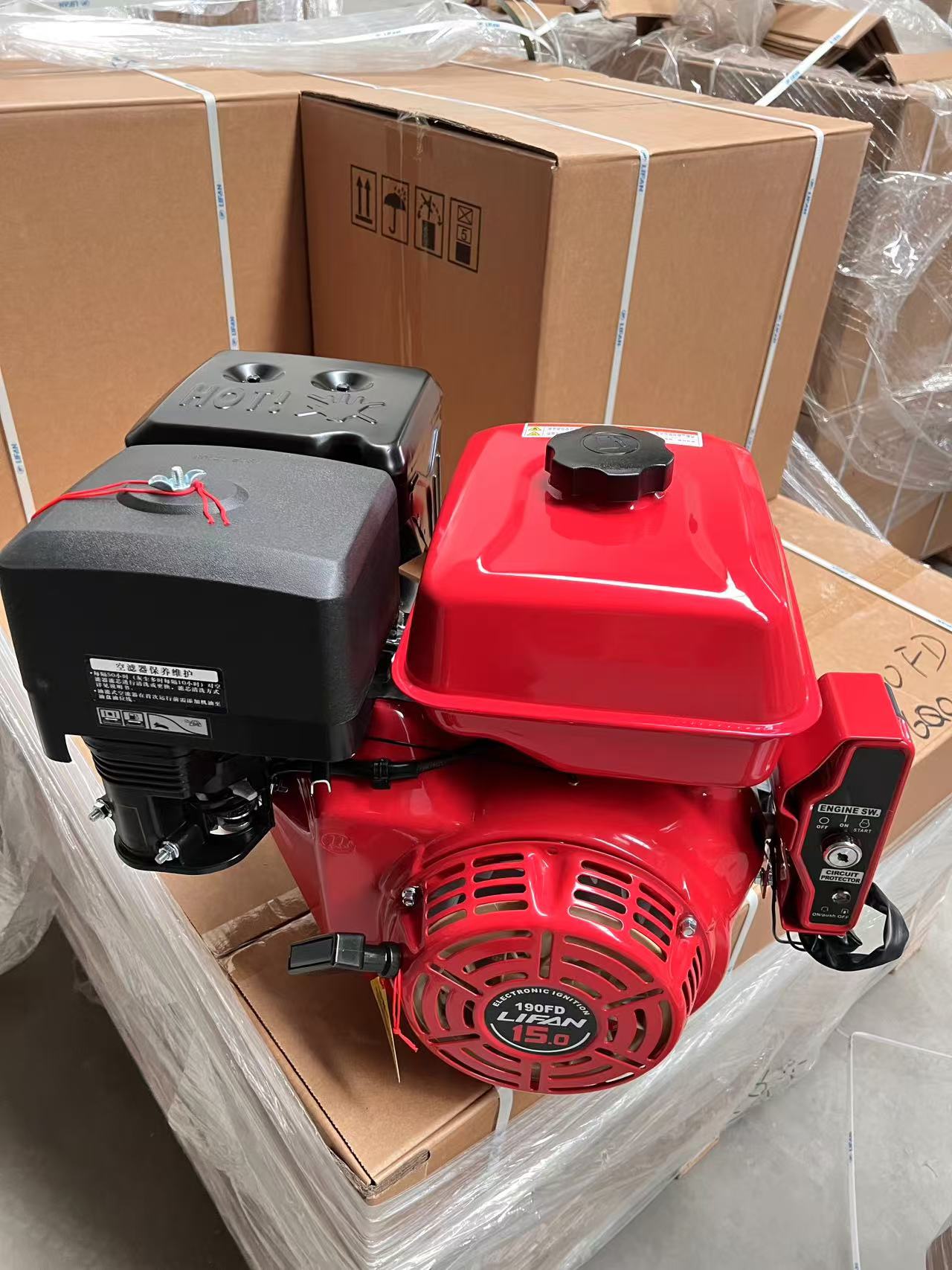

Engine: 15hp Lifan 190FD

Start: manual (recoil) start and electric start

Hydraulic Cylinder Size: 5.0" size

Oil Capacity: 20 liters

Gear Pump: 2 stage 16GPM flow

Valve: automatic return control valve with safety release function

Maximum Splitting Force: 45Ton

Wedge Height: 8 inch (200mm)

Split and Return Cycle Time: 12 seconds

Maximum Log Length: 24 inch (610mm)

Working Position: horizontal and vertical

Wheels and Tires: 16 inch pneumatic x 4.8 inch

Mudguard: with

Coupler:50mm cast steel with safety chains

Maximum Recommended Towing Speed: 40 km/h

Package Diameter: 187cmx51cmx65cm

Package Weight: 315kgs
